| BIG BLUE WHOLE HOUSE SYSTEM |
|
|
|
|
|
|
|
|
|
|
|
|
| INCLUDES; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| TWO 20" BIG BLUE CORROSION RESISTANT POLYPROPYLENE HOUSINGS |
|
|
|
|
|
|
|
|
|
|
|
|
| CAPS WITH PRESSURE RELEASE VALVES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| DUAL MOUNTING BRACKET WITH SCREWS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| TWO PRESSURE GUAGES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| CONNECTION NIPPLE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| TWO SHUT OFF BALL VALVES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| WRENCH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| TWO 20" 1 MICRON, DUAL-GRADIENT DENSITY, PRE-FILTER CARTRIDGES |
|
|
|
|
|
|
|
|
|
|
|
|
| ONE 20" HALF MICRON SOLIDE CARBON BLOCK CARTIDGE |
|
|
|
|
|
|
|
|
|
|
|
|
|
| FEATURES; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| FILTERS 5 GALLONS PER MINUTE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| FILTERS DOWN TO 0.5 MICRONS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 99.95% REMOVAL OF CRYPTOSPORIDIUM, GIARDIA, ENTAMOEBA AND TOXOPLASMA CYSTS |
|
|
|
|
|
|
|
|
|
|
| REMOVES BAD TASTE, ODORS AND CHLORINE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ONE YEAR CARTRIDGE LIFE SPAN (150,000 GALLONS) |
|
|
|
|
|
|
|
|
|
|
|
|
|
| DRAIN VALVES ON BOTTOM OF EACH HOUSING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| EASY TO MAINTAIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| COMES WITH EXTRA PRE-FILTER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10 YEAR WARRANTY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| FREE ANNUAL MAINTANENCE AND SERVICE (for local clients) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PRE-FILTER HAS THREE TIMES THE DIRT-HOLDING CAPACITY THAN OTHER SIMILAR MODELS |
|
|
|
|
|
|
|
|
|
|
| THE FILTER DEPTH HAS BEEN INCREASED BY 233% |
|
|
|
|
|
|
|
|
|
|
|
|
|
| IDEAL FOR ALL RESIDENTIAL, RURAL, MUNICIPAL AND COMMERCIAL APPLICATIONS |
|
|
|
|
|
|
|
|
|
|
|
| FDA APPROVED MATERIALS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTES;
|
|
|
|
|
|
|
|
|
| WHEN P.S.I ON THE PRESSURE VALVES SHOW A DIFFERENCE OF 15 PSI |
|
|
|
| IT IS TIME TO CHANGE THE CARBON BLOCK. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| IF FLOW RATE IS NOTISABLY LOWER THIS WOULD INDICATE IT IS DUE. |
|
|
|
| AVERAGE LIFE SPAN FOR PRE-FILTER IS 6 MONTHS |
|
|
|
|
| AVERAGE LIFE SPAN FOR CARBON BLOCK IS 8 MONTHS TO 16 MONTHS (1 YEAR AVERAGE) |
|
| AVERAGE LIFE SPAN FOR 5 MICRON CARBON BLOCK IS 4 MONTHS TO 8 MONTHS (6 MONTHS AVERAGE) |
| .5 MICRON CARBON BLOCK CAN FILTER ABOUT 570.000 LITRES |
|
|
|
|
| FITS 3/4" PIPING BUT CAN BE ONE INCH |
|
|
|
|
|
| PRE-FILTER(DGD-2501-20) DIMENTIONS ARE 4-1/2" X 20". IT STARTS TO FILTER 20 MICRONS, THEN TO 1 MICRON |
| FLOW RATE ON PRE-FILTER IS 20 GPM's |
|
|
|
|
|
| OPTIONAL 14 GMP ULTRA VIOLET LIGHT POST FILTER (IDEAL FOR RURAL) |
|
|
|
| OPTIONAL BY-PASS KIT |
|
|
|
|
|
|
|
| 0.5 MICRON BLOCK IDEAL FOR COUPLE (8.5psi @ 4gpm) 150.000 gallons) |
|
|
|
| 5 MICRON BLOCK IDEAL FOR AVERAGE FAMILY (2.5psi @ 4gpm) 40.000 gallons) |
|
|
| With average family, both pre-filter and 5 micron block should be changed every 6 months. |
|
|

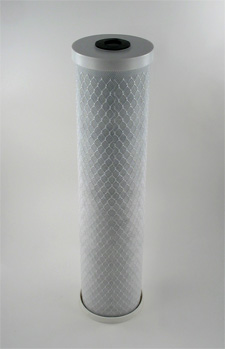

This is the 5-micron coconut shell solid carbon block. It's rated for a spectacular 42,000 gallons of chlorine removal from city tap water.
