BELKRAFT BIG BLUE WHOLE HOUSE SYSTEM
INCLUDES;
  • TWO 20" BIG BLUE CORROSION RESISTANT POLYPROPYLENE HOUSINGS
  • CAPS WITH PRESSURE RELEASE VALVES
  • DUAL MOUNTING BRACKET WITH SCREWS
  • TWO PRESSURE GUAGES
  • CONNECTION NIPPLE
  • TWO SHUT OFF BALL VALVES
  • WRENCH
  • TWO 20" 5 MICRON, DUAL-GRADIENT DENSITY, PRE-FILTER CARTRIDGES
  • ONE 20" 5 MICRON SOLIDE CARBON BLOCK CARTIDGE
FEATURES;
FILTERS 5 GALLONS PER MINUTE
FILTERS DOWN TO 5 MICRONS
99.95% REMOVAL OF CRYPTOSPORIDIUM, GIARDIA, ENTAMOEBA AND TOXOPLASMA CYSTS
REMOVES BAD TASTE, ODORS AND CHLORINE
ONE YEAR CARTRIDGE LIFE SPAN
EASY TO MAINTAIN
COMES WITH EXTRA PRE-FILTER
10 YEAR WARRANTY
FREE ANNUAL MAINTANENCE AND SERVICE (If in the Ottawa region)
PRE-FILTER HAS THREE TIMES THE DIRT-HOLDING CAPACITY THAN OTHER SIMILAR MODELS
THE FILTER DEPTH HAS BEEN INCREASED BY 233%
IDEAL FOR ALL RESIDENTIAL, RURAL, MUNICIPAL AND COMMERCIAL APPLICATIONS
FDA APPROVED MATERIALS
NOTES;
WHEN P.S.I ON THE PRESSURE VALVES SHOW A DIFFERENCE OF 15 PSI
IT IS TIME TO CHANGE THE CARBON BLOCK.
IF FLOW RATE IS NOTISABLY LOWER THIS WOULD INDICATE IT IS DUE.
AVERAGE LIFE SPAN FOR PRE-FILTER IS 6 MONTHS
AVERAGE LIFE SPAN FOR CARBON BLOCK IS 8 MONTHS TO 14 MONTHS (1 YEAR AVERAGE)
.5 MICRON CARBON BLOCK CAN FILTER ABOUT 570.000 LITRES
FITS 3/4" PIPING BUT CAN BE ONE INCH
PRE-FILTER (DGD-50/5-20) DIMENTIONS ARE 4-1/2" X 20". IT STARTS TO FILTER 50 MICRONS, THEN TO 5 MICRON
FLOW RATE ON PRE-FILTER IS 20 GPM's
OPTIONAL 14 GMP ULTRA VIOLET LIGHT POST FILTER (IDEAL FOR RURAL)
OPTIONAL BY-PASS KIT
0.5 MICRON BLOCK IDEAL FOR COUPLE (8.5psi @ 4gpm) (570.000 LITRES)
5 MICRON BLOCK IDEAL FOR AVERAGE FAMILY (2.5psi @ 4gpm) 151.000 LITRES)
With average family, both pre-filter and 5 micron block should be changed every 6 to 12 months.

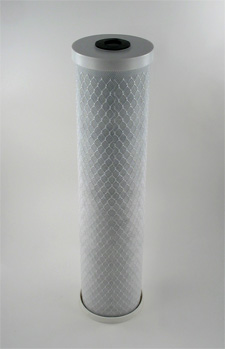

This is the 5-micron coconut shell solid carbon block. It's rated for a spectacular 42,000 gallons of chlorine removal from city tap water.
